HDZero ECO Bundle

My Review

This camera bundle brings HDZero to whoop pilots at the lowest cost ever! The composite HD signal mixed with the budget nature of this camera means that the quality of the image won't be quite as nice as other options, but it also means that the MIPI cable has been ditched and reliability has been improved! This camera also has the same lens as the famous TW Pinch camera, which means that you get an incredible FOV perfect for freestyle and racing. This is my personal favorite HDZero camera bundle for whoops due to the FOV, price, and the fact that it doesn't use a MIPI cable.

You'll want to pair this with either the BikeGuy Canopy of the CustomFPV Camera Mount, depending on your preferences. These are the two best canopies for this camera by far!

From HDZero

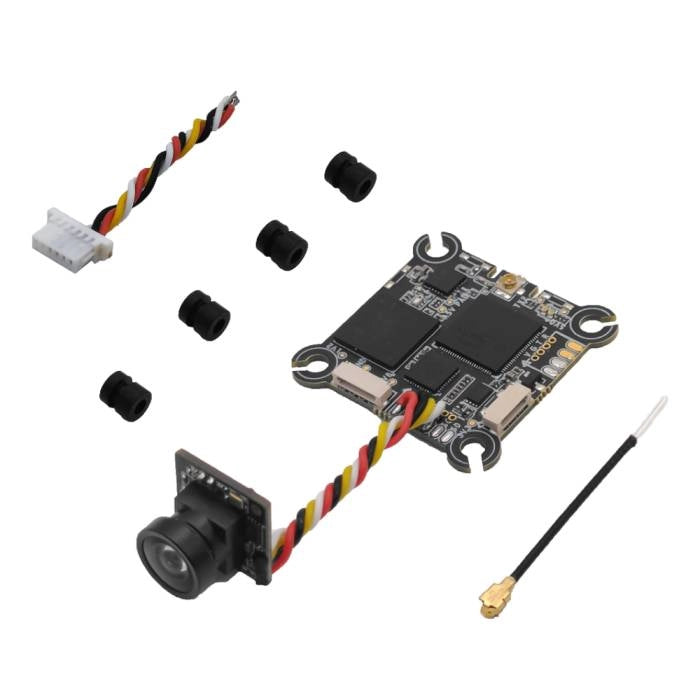

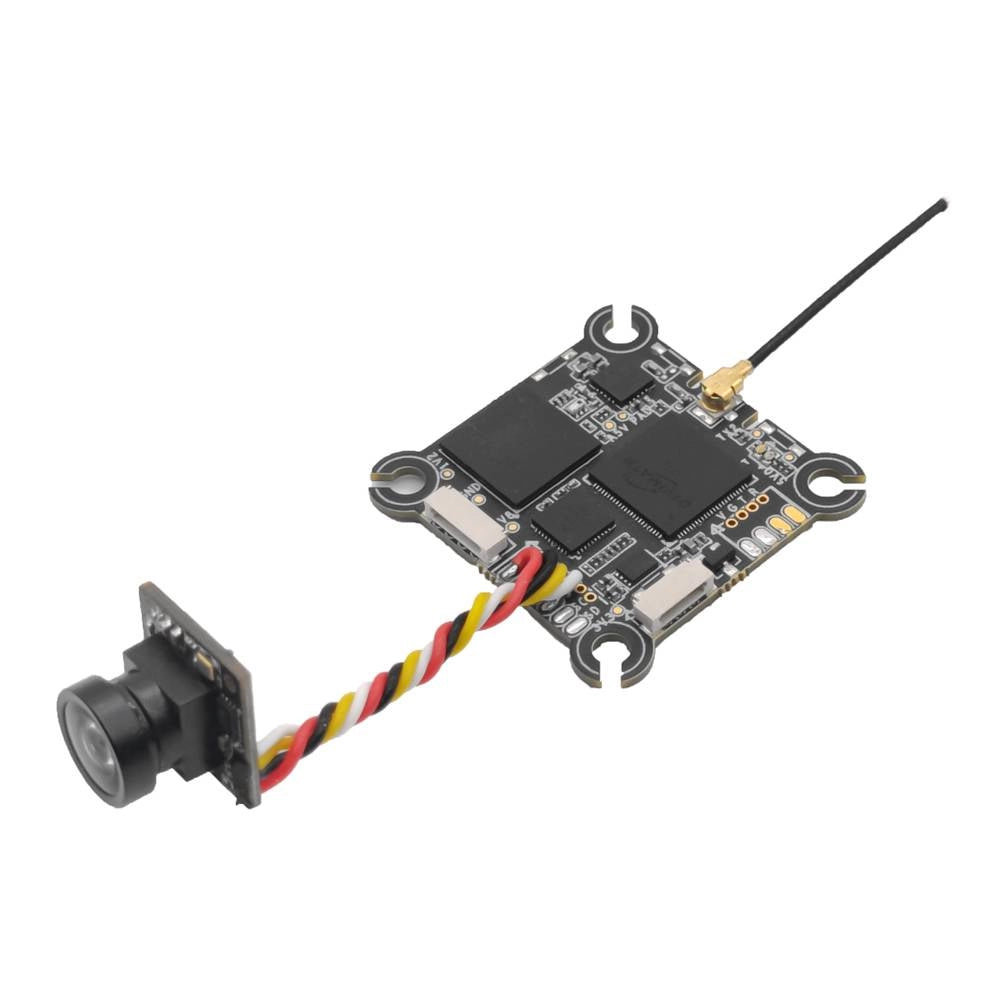

HDZero ECO Bundle is designed to bring digital FPV to more pilots by offering a low cost, light weight, and durable alternative to analog video. The digital video signal has stable color reproduction and 720p progressive scan video with the low latency HDZero is known for.

This budget-friendly Air Unit is a groundbreaking product—it’s the first VTX/camera combination that utilizes a HD composite video signal, eliminating the need for a delicate MIPI cable.

The ECO FPV System was meticulously designed for ultra-lightweight drones like Tiny Whoops, where every fraction of a gram counts. The camera’s huge 98deg vertical FOV is perfect for fast indoor proximity flying. The ECO VTX weighs approximately 4.5g, while the camera (including wires) comes in at about 1.6g. With the included 0.2g dipole antenna, the entire Eco Bundle weighs about mere 6.3g in total.

HDZero Eco VTX Specifications:

- Composite HD Video Interface
- 1S-3S Input
- 25mW/200mW RF Output
- 25 x 25 M2 Soft Mounting
- Antenna Retention
- 4.5grams/4mm Thickness

HDZero Eco Camera Specifications:

- 14mm wide x 16 tall x 13mm thick
- 1.6g weight with cable
- 1/3” CMOS sensor
- FOV: 4:3  D:150° H:120° V:98°
- Suggested Setting
   . Sharpness: 15
   . Saturation: 8
   . R Surp: 8
   . Brightness: 45
