Happymodel SuperX HD ELRS Flight Controller

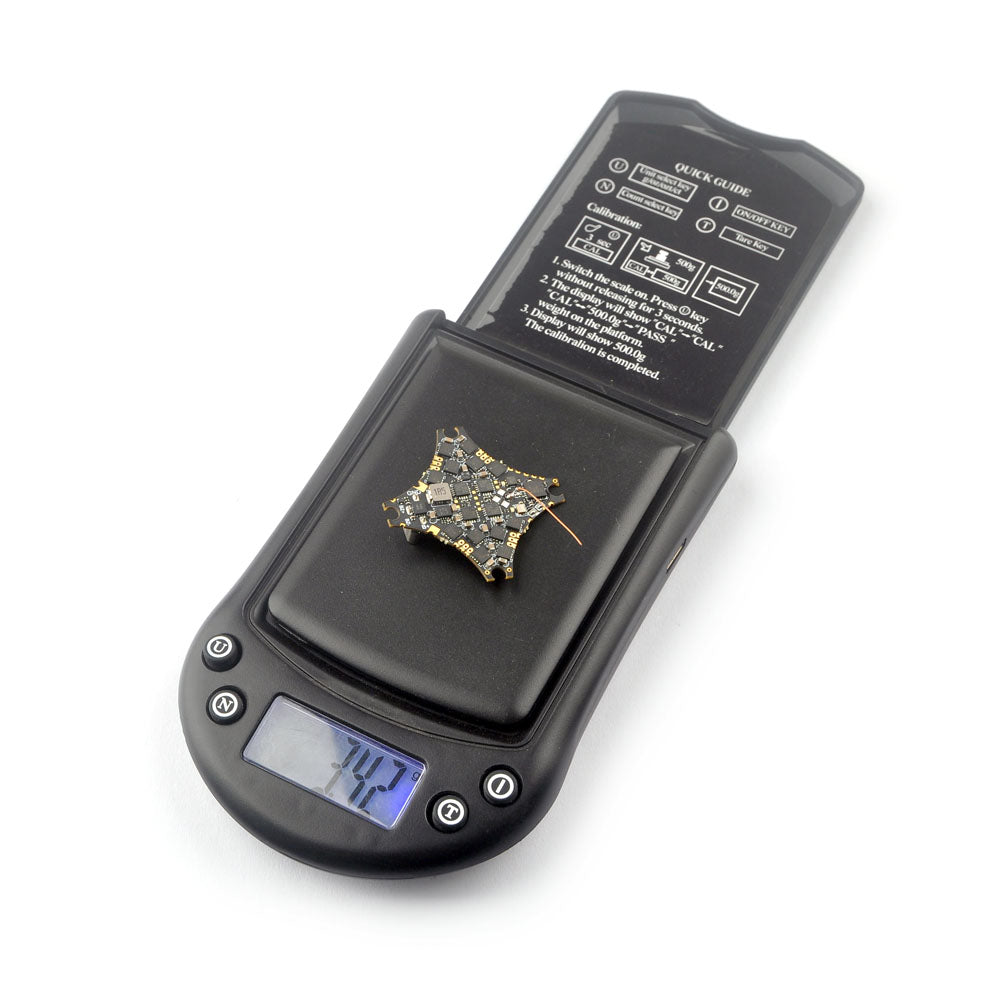

This flight controller sports 12a ESCs and no analog OSD chip. At just under 3.5g, this might be the lightest 12a ESC Flight Controller I know of! The lack of OSD chip means that you won't be able to get OSD if you use an analog build, but the OSD chip is just extra unnecessary weight for an HD build! If you are flying HDZero, Walksnail, or even DJI, the OSD is done differently and does not require the same OSD chip that analog does. So if you want an HD build with 12a ESCs, this is probably the best way to do it! Especially since it's only about half a gram heavier than the lightest 5a ESC Flight Controllers.

This FC has a serial ELRS receiver and no VTX. Don't confuse this flight controller with the analog one that comes with the Mobula6 2024, this is the flight controller that comes with the Mobula6 2024 HDZero ECO.

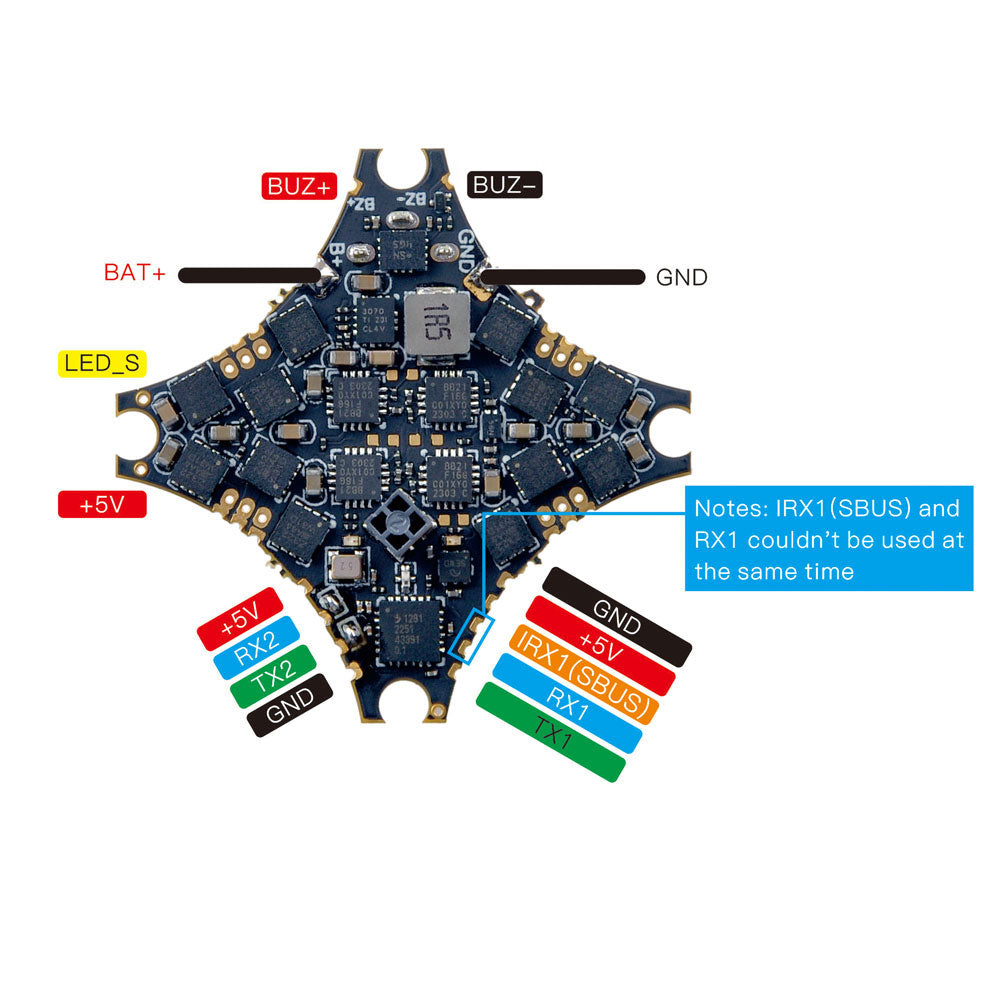

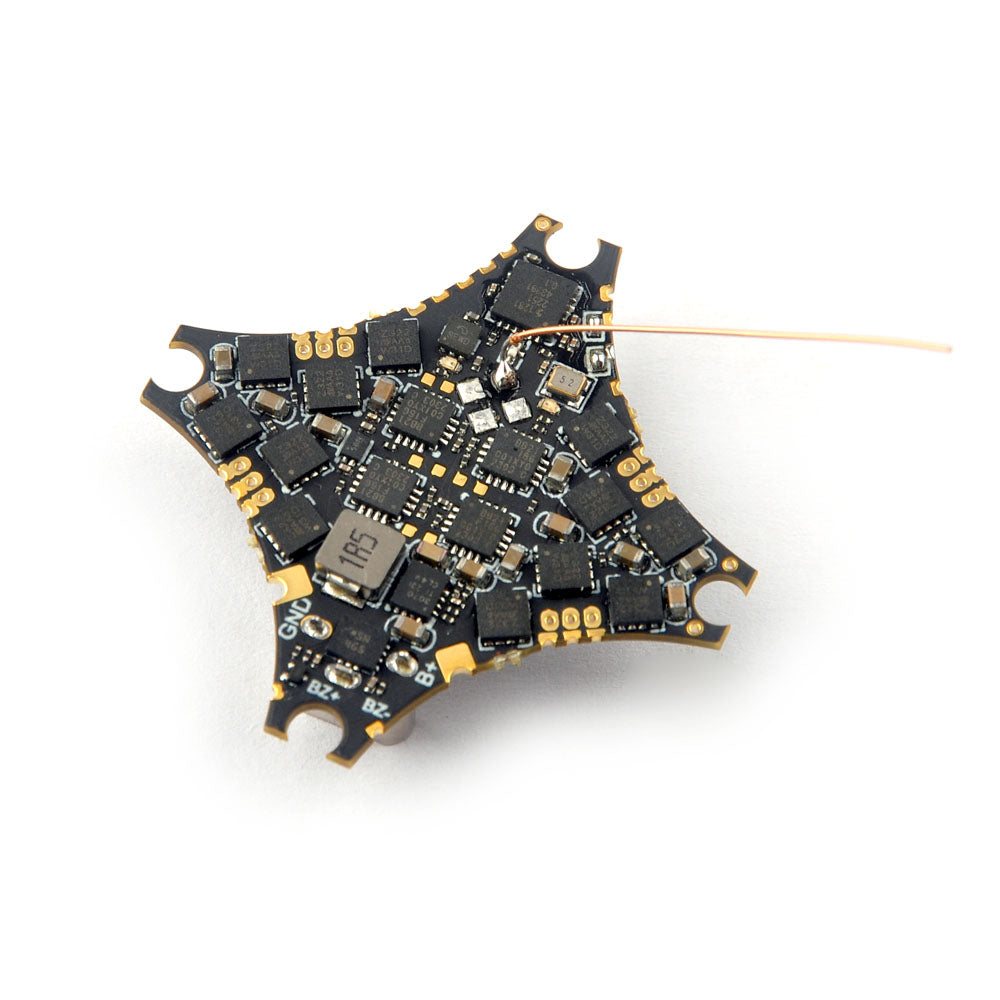

Note: The flight controller we carry comes with the copper wire antenna for the receiver. It is not using the tower antenna like shown in the diagram below. You can easily stack an HDZero VTX above it since it is using a wire antenna.

Note: Before buying this flight controller, make sure you have good soldering skills and can solder tiny pads. Any flight controller failure caused by soldering errors is not covered by the warranty. The motor plugs don't come pre-soldered from the factory (this is part of the official happymodel description but sometimes these flight controllers do have motor plugs pre-soldered).

Flight Controller Specs:

Betaflight 4.4.2 firmware ready
Firmware target: CRAZYBEEF4DX
MCU: STM32F411CEU6 (100MHz, 512K FLASH)
Sensor: BMI270 or ICM42688P (SPI connection)
Power supply: 1-2S Lipo Lihv battery input (DC 2.8V~8.7V), only support 1s input for this drone
Built-in 12A Blheli_S 4in1 ESC DSHOT300 ready
Built-in UART elrs receiver (Default is connected on UART2)
Elrs v3.0 ready, support WIFI and pass-through firmware update
Bluejay ESC Firmware ready
Built-in 5V 1.5A(Max) BEC
Built-in voltage detectionBuilt-in currents meter
No betaflight analog osd chip
Antenna: enamel copper wire

ESC Specs:

Power supply: 1-2S LiPo/LiPo HV
Current: 12A continuous peak 15A (3 seconds)
Support ESC-Configurator and BLHELI_S Suite configurator
Factory firmware: Z-H-30 – Bluejay, 0.19, 48kHz
Default protocol: DSHOT300

ELRS Receiver Specs:

RF Frequency: 2.4GHz
Antenna: enameled copper wire 31mm length
Telemetry output Power: <12dBm
Receiver protocol: CRSF
Default firmware version: ExpressLRS V3.0.1
The same hardware with Happymodel EP1 receiver
Could update firmware via ExpressLRS configurator or WIFI or Betaflight pass-through
