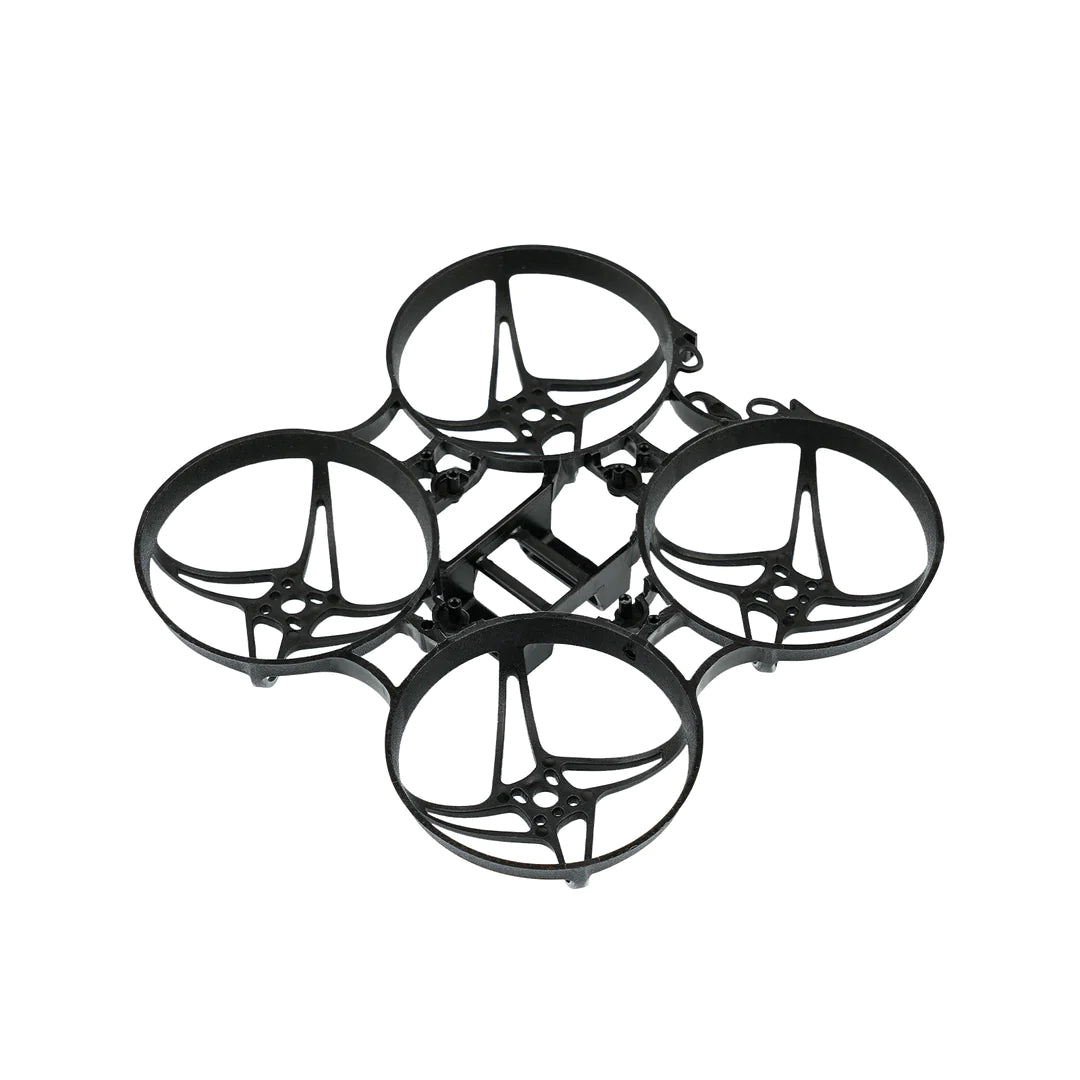

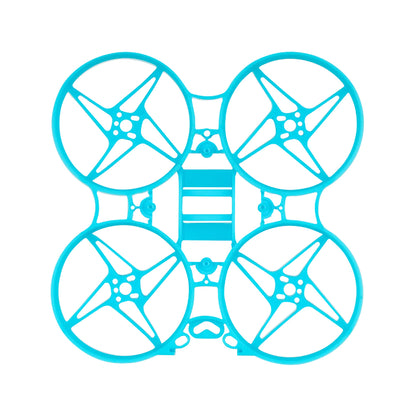

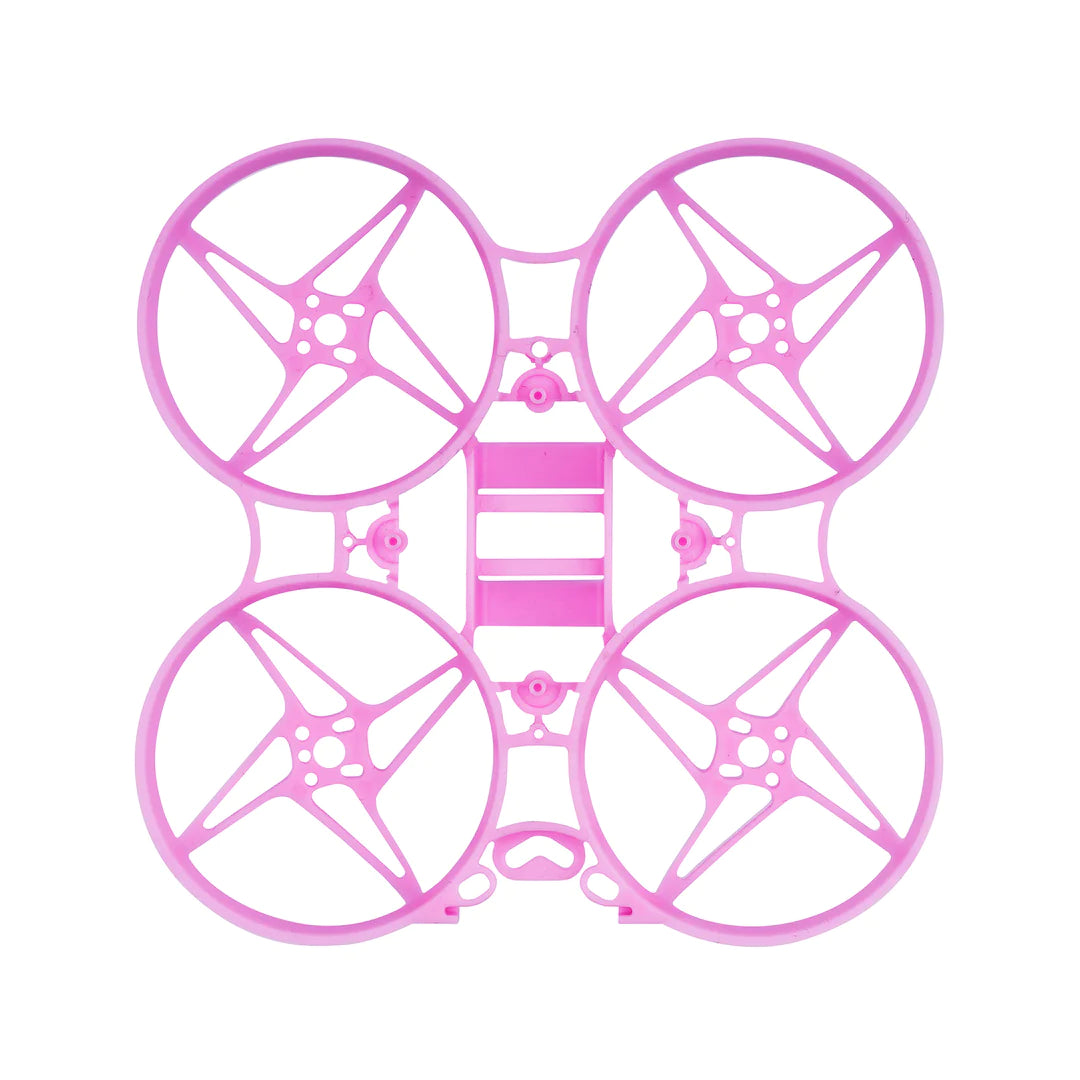

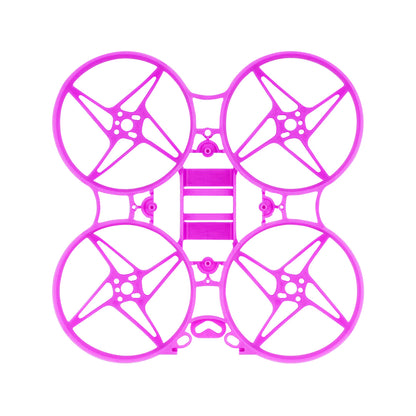

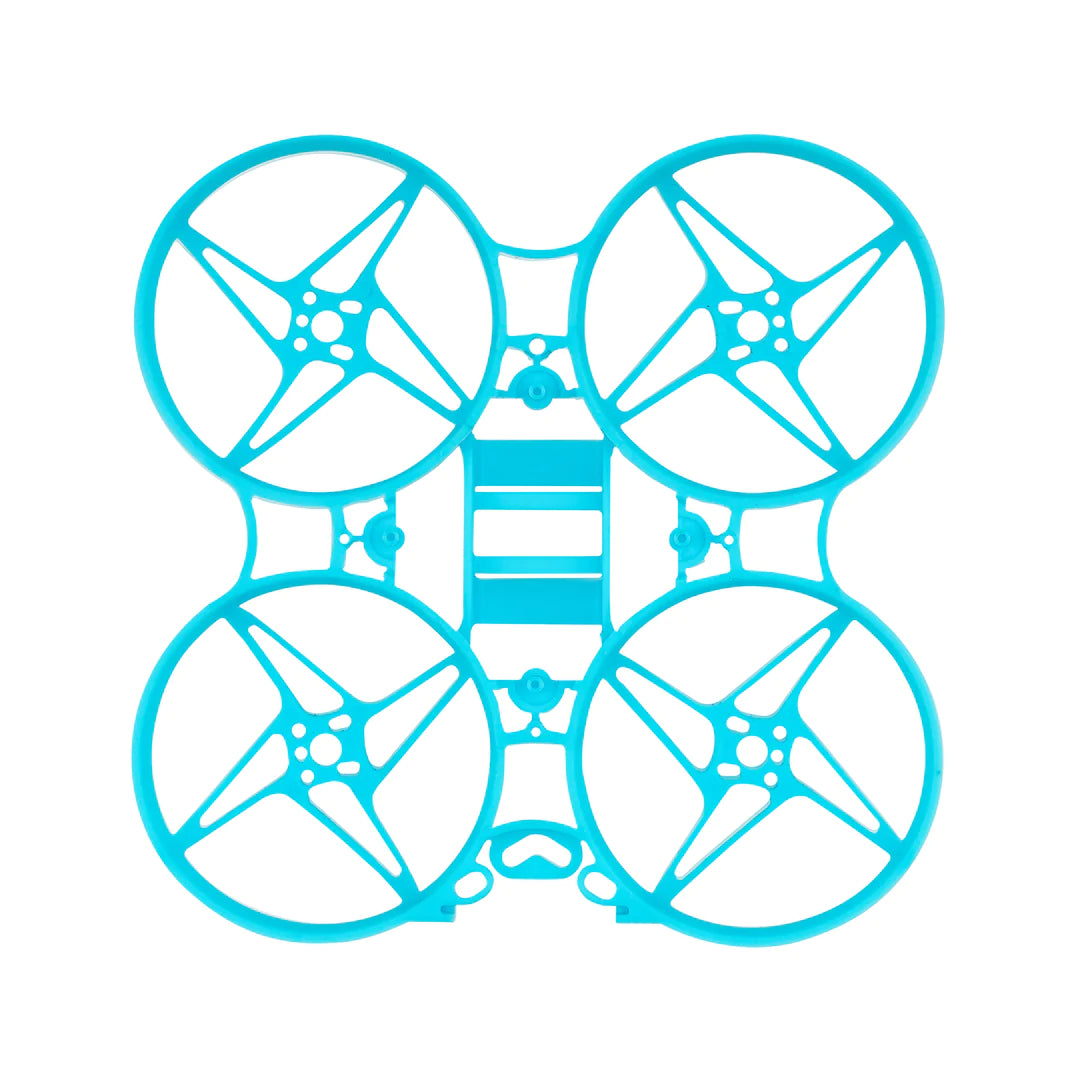

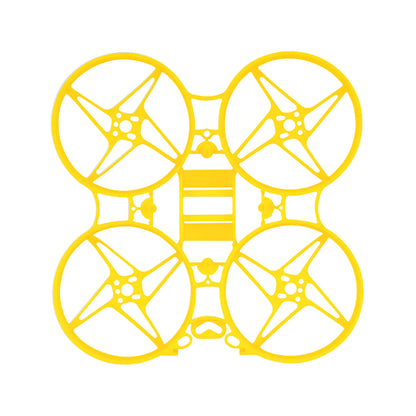

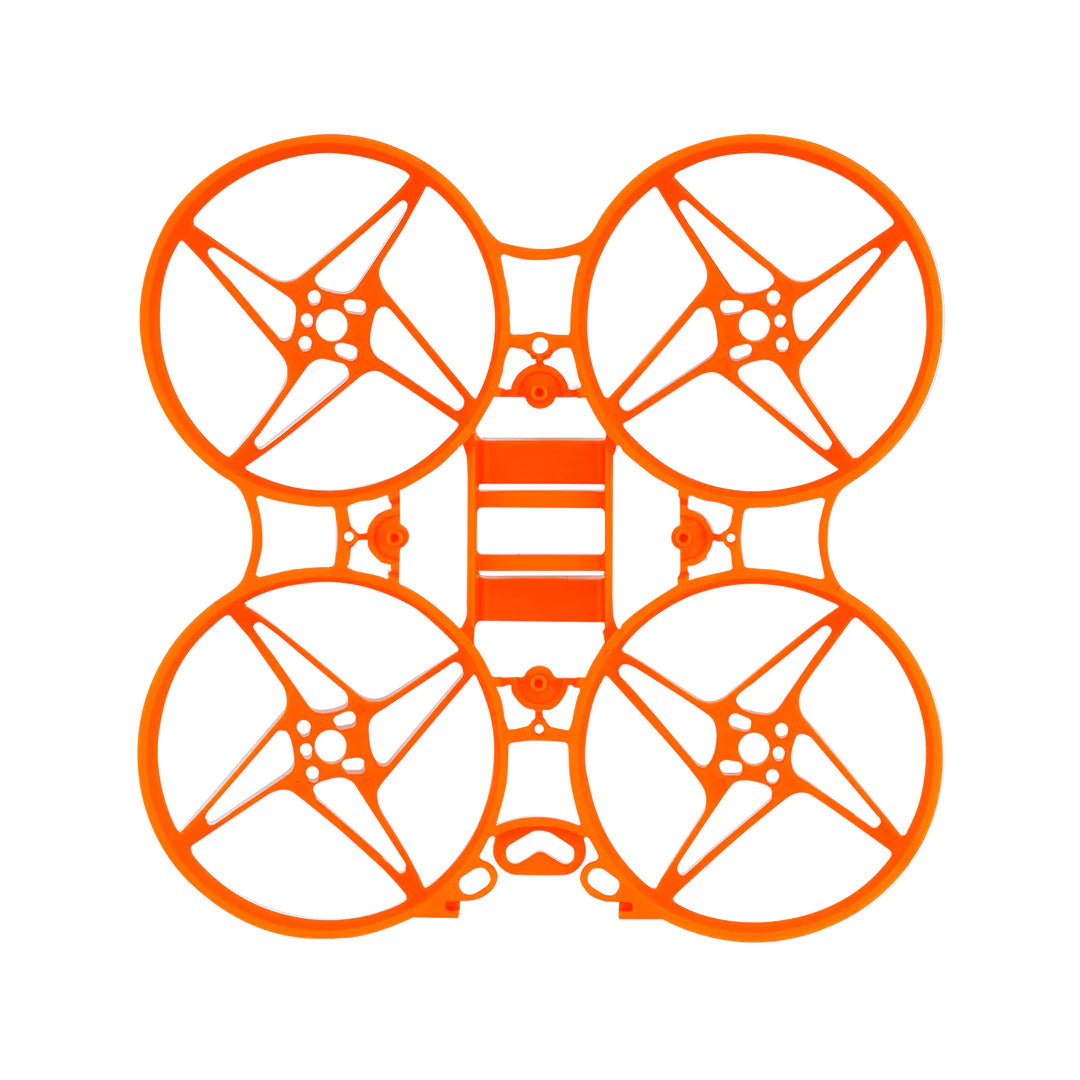

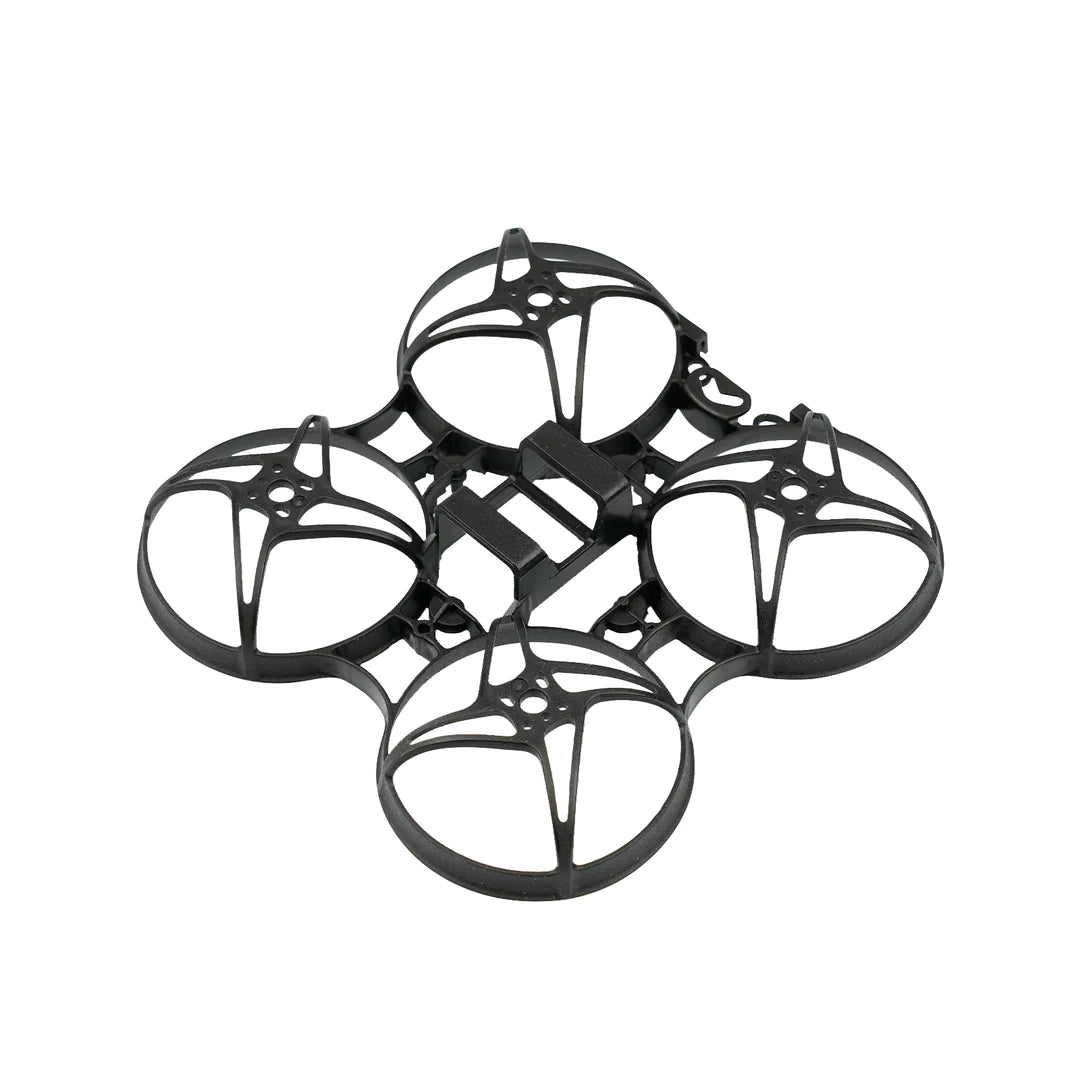

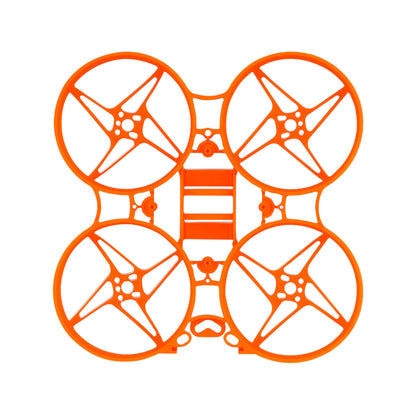

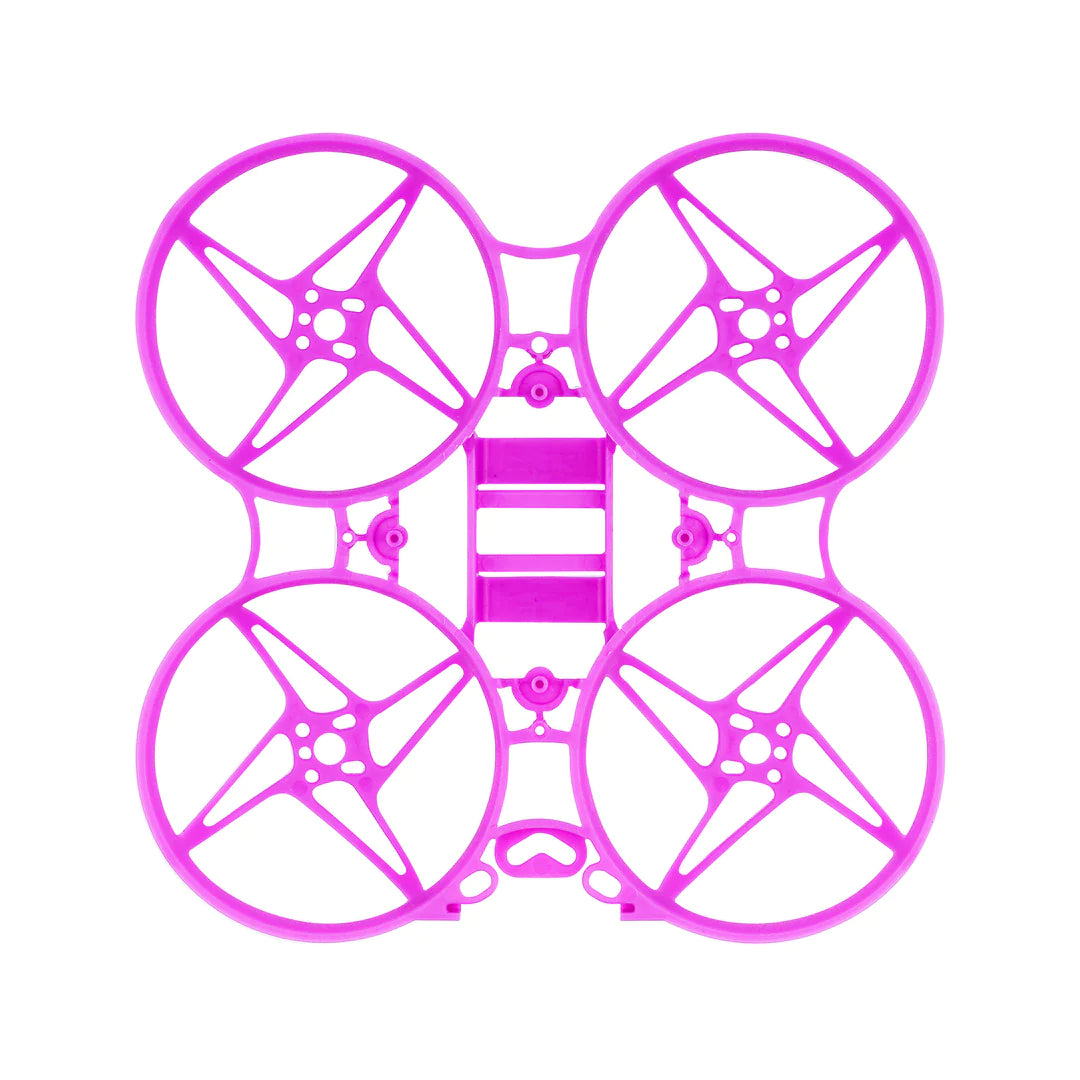

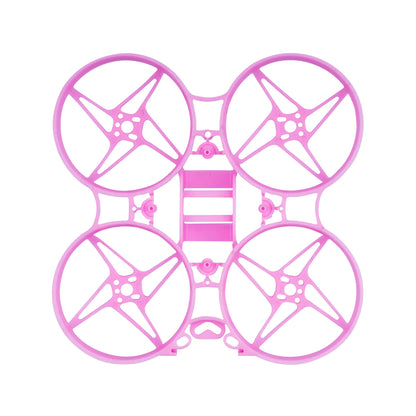

BetaFPV Meteor75 Micro Brushless Whoop Frame

BetaFPV Meteor75 Micro Brushless Whoop Frame

Regular price $4.99 USD
Regular price $4.99 USD Sale price $4.99 USD
Sale Sold out
Color

My Review

The Meteor75 is one of the most popular 75mm frames and provides the perfect balance between weight and durability. It is just a little heavier than the Happymodel Mobula 7 V4, but it is also more durable. It also can be a little tricky to use with direct soldered motors (unless you rotate your flight controller 90 degrees) as it can be difficult to push the motors through the frame. Some flight controllers also have their usb port blocked by the battery tray if you don't rotate the flight controller as well. However, the popular BetaFPV F411 1s 5a Flight Controller fits this frame like a glove and is perfect if you want to use your motor plugs. If you're trying to use the motor plugs with a different flight controller, it might not fit as well. Just keep in mind that 75mm frames often are made for 450mah batteries, which are wider. This decreases the "open space" between the ducts and battery tray, which is where a lot more of these complications can come into play. This is something that will happen with other 75mm frames as well, but it's just important to think about as this can make compatibility a little extra weird. The battery tray on the Meteor75 is also a little tighter, which fits BetaFPV batteries and premiumd folded cell batteries better. But if you use cheaper, folded cell batteries, they might be too big to fit this tray.

Despite some of these quirks, I use the Meteor75 frequently and it is the lightest 75mm frame that I've personally never broken. So it's a top choice for me and many other pilots

From the Manufacturer

The brand new lightweight 75mm 1S brushless frame for Meteor75 Brushless Whoop Quadcopter is released now! This frame is ultralight at only 5.68g, but it is still durable. It has been specially designed for the following points.

  • Adjusted¬†the¬†height of the frame, the lowest point of frame is the motor position so the battery can be protected while the drone is landing.
  • Increased the height of the frame loop to protect the propeller better.

Bullet Point

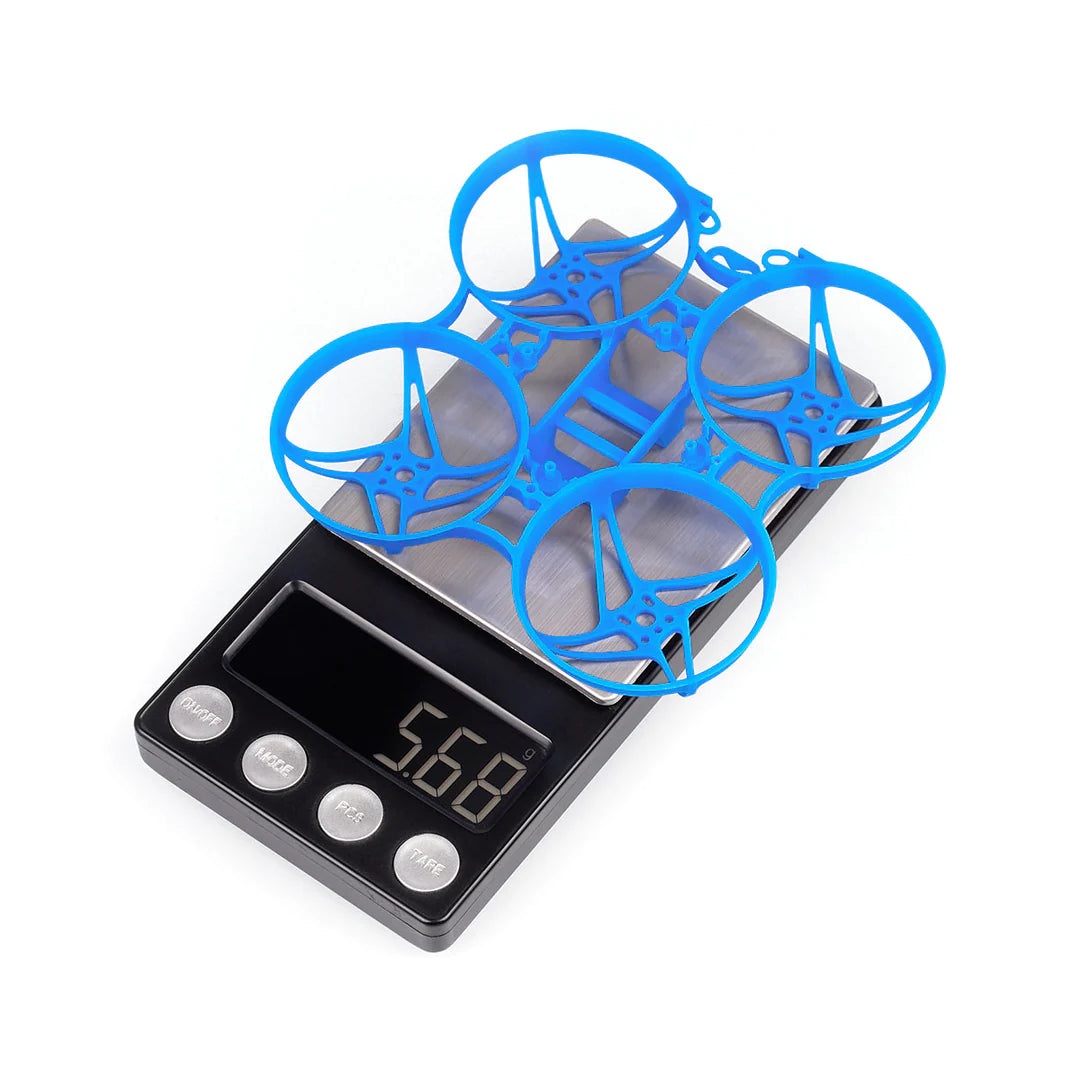

  • Meteor75 frame is ultralight only 5.68g, light but durable enough.¬†
  • The motor mount position uses a quadrilateral stretch structure, the frame is more durable and stable.¬†
  • The height of the frame has been adjusted, the lowest point of the frame is the motor position, the battery can be protected while the drone is landing. It also increased the height of the frame loop to protect the propeller better.
  • Designed two different motor mounting holes that support¬†most micro brushless motors, all at the same time.
  • With a 26mm*26mm FC mounting columns can match whoop style FC.

Specification

  • Item: Meteor75 frame
  • Material:¬†Plastic
  • Size: 75mm
  • Weight: 5.68/pc

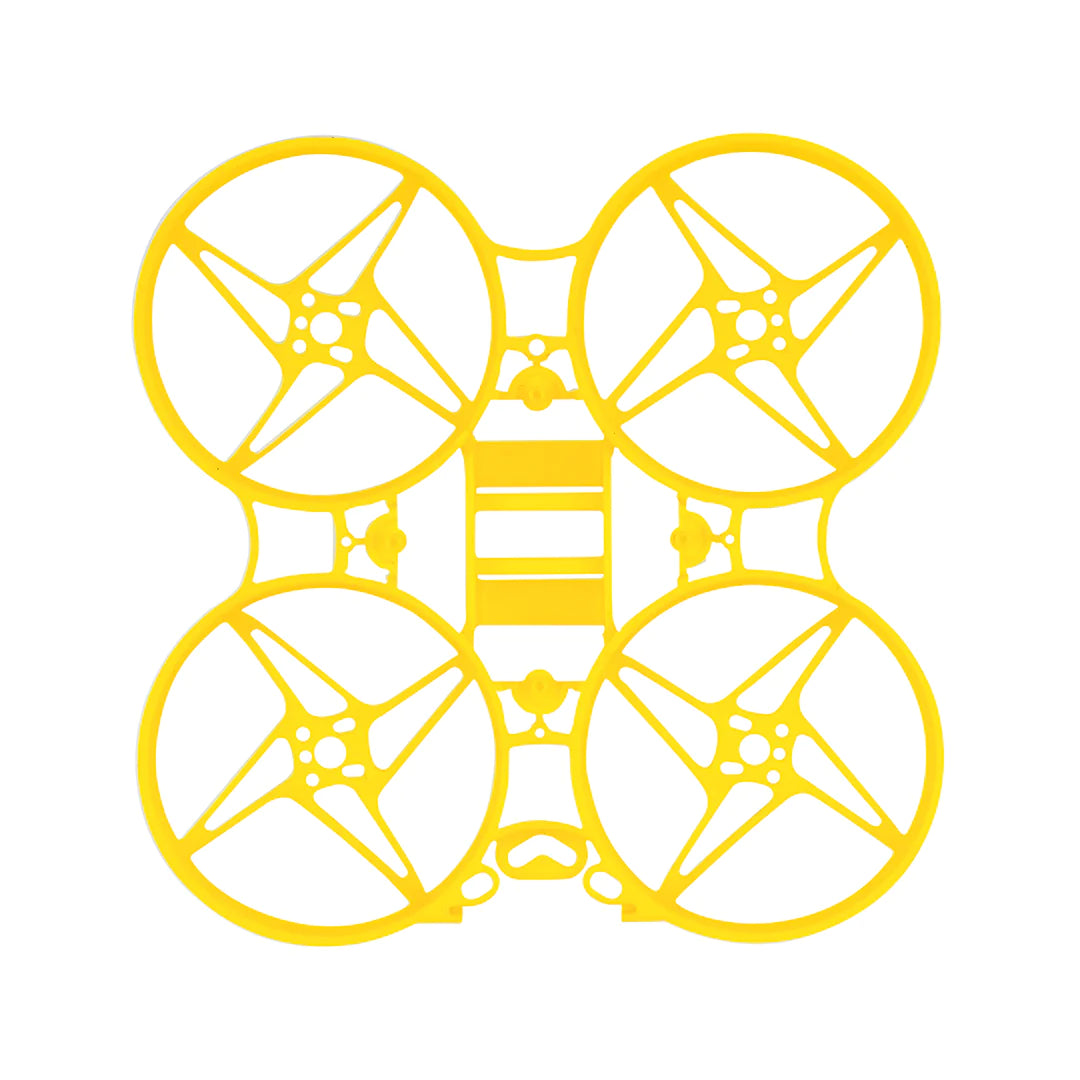

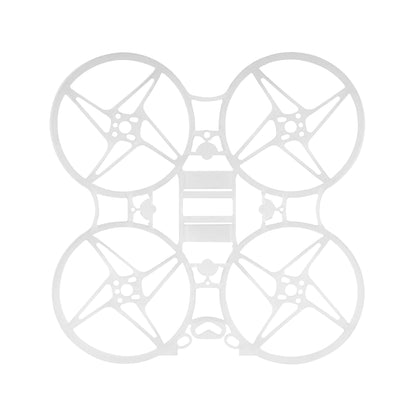

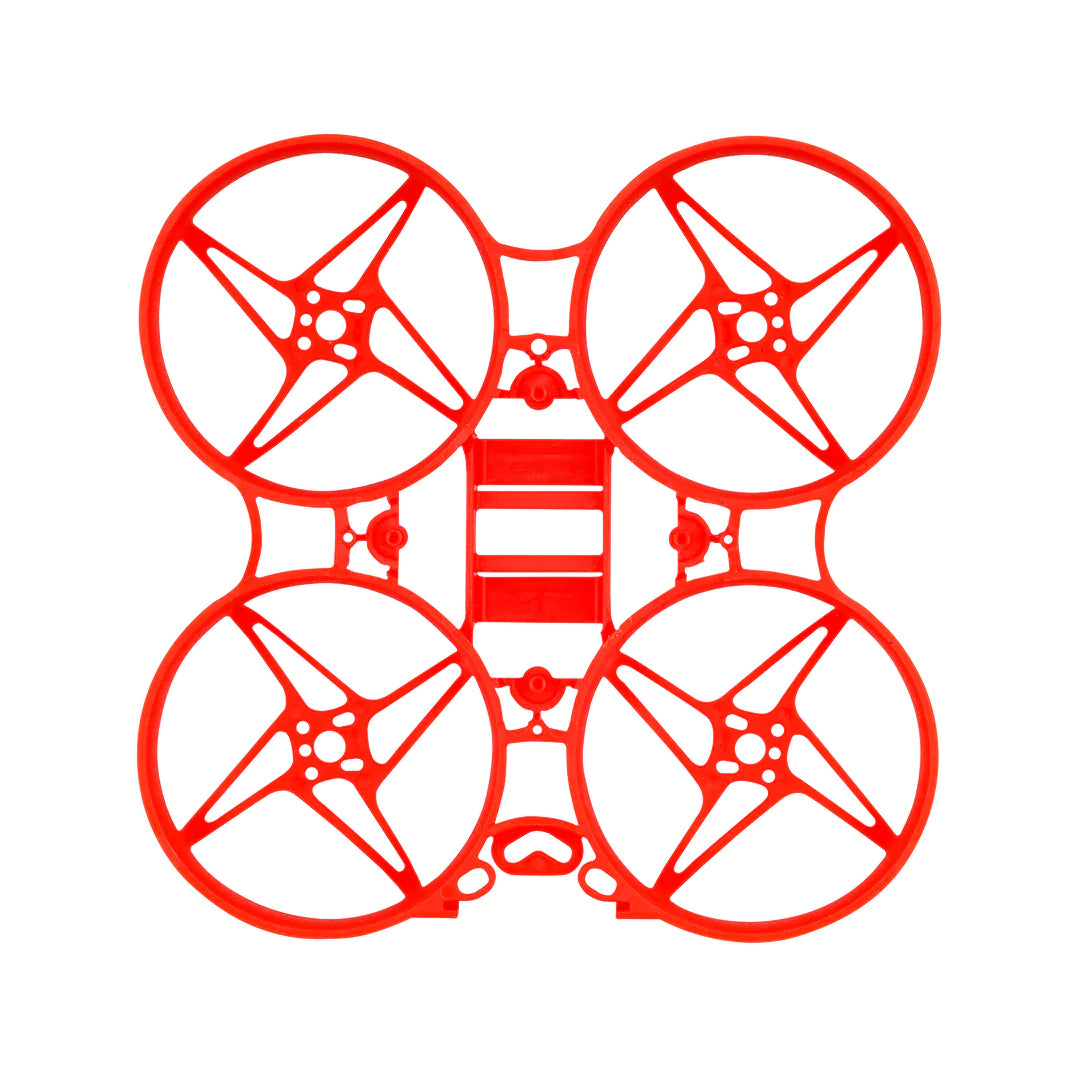

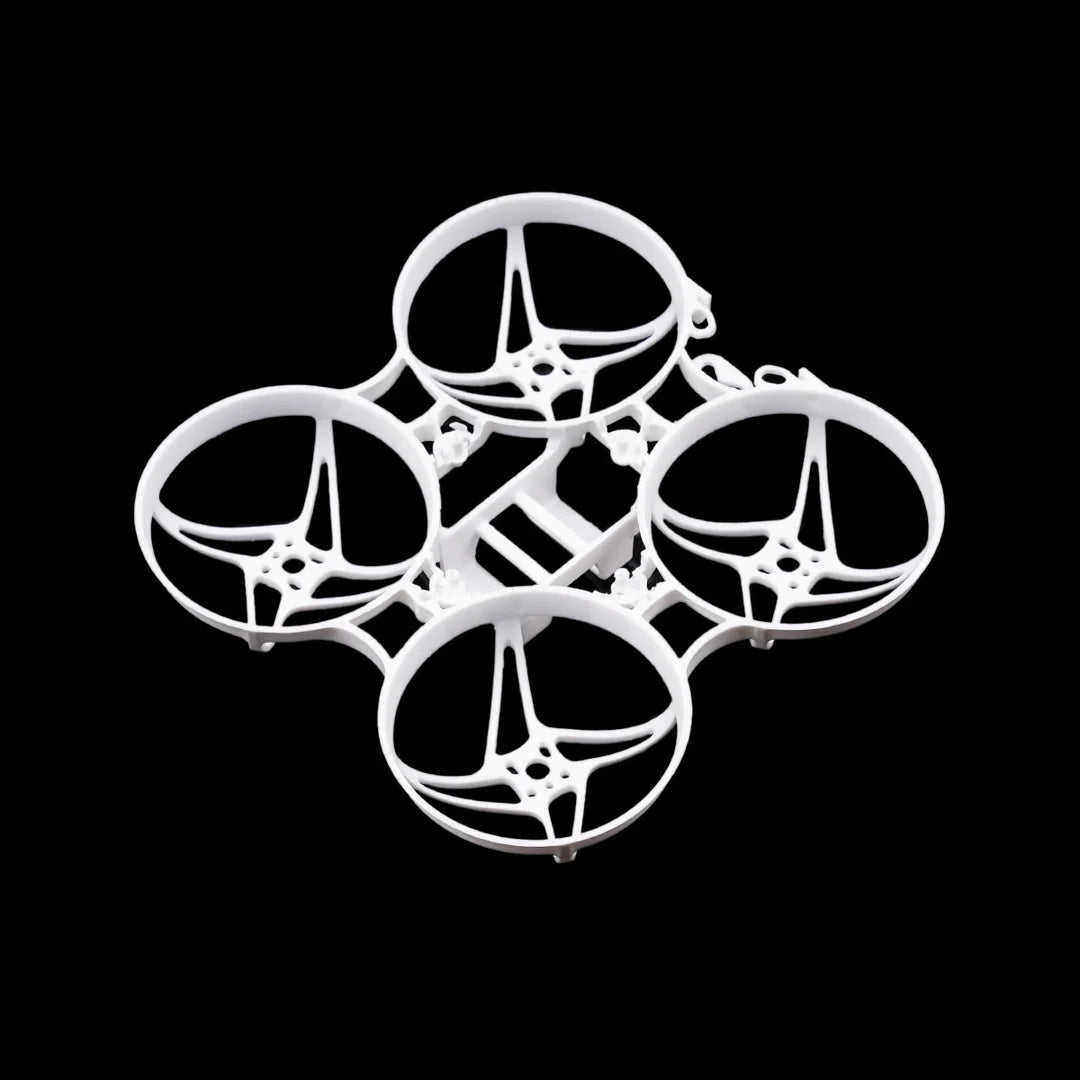

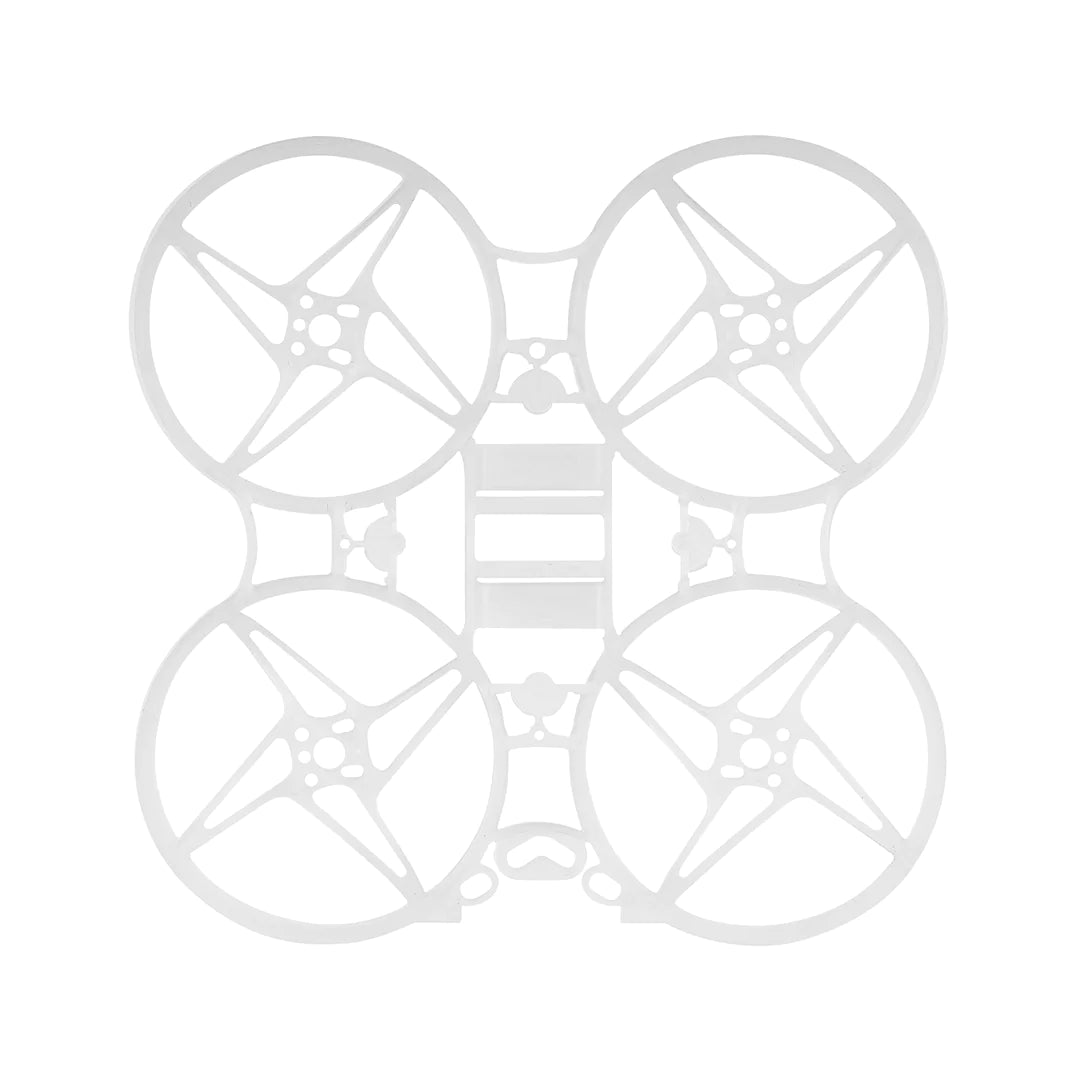

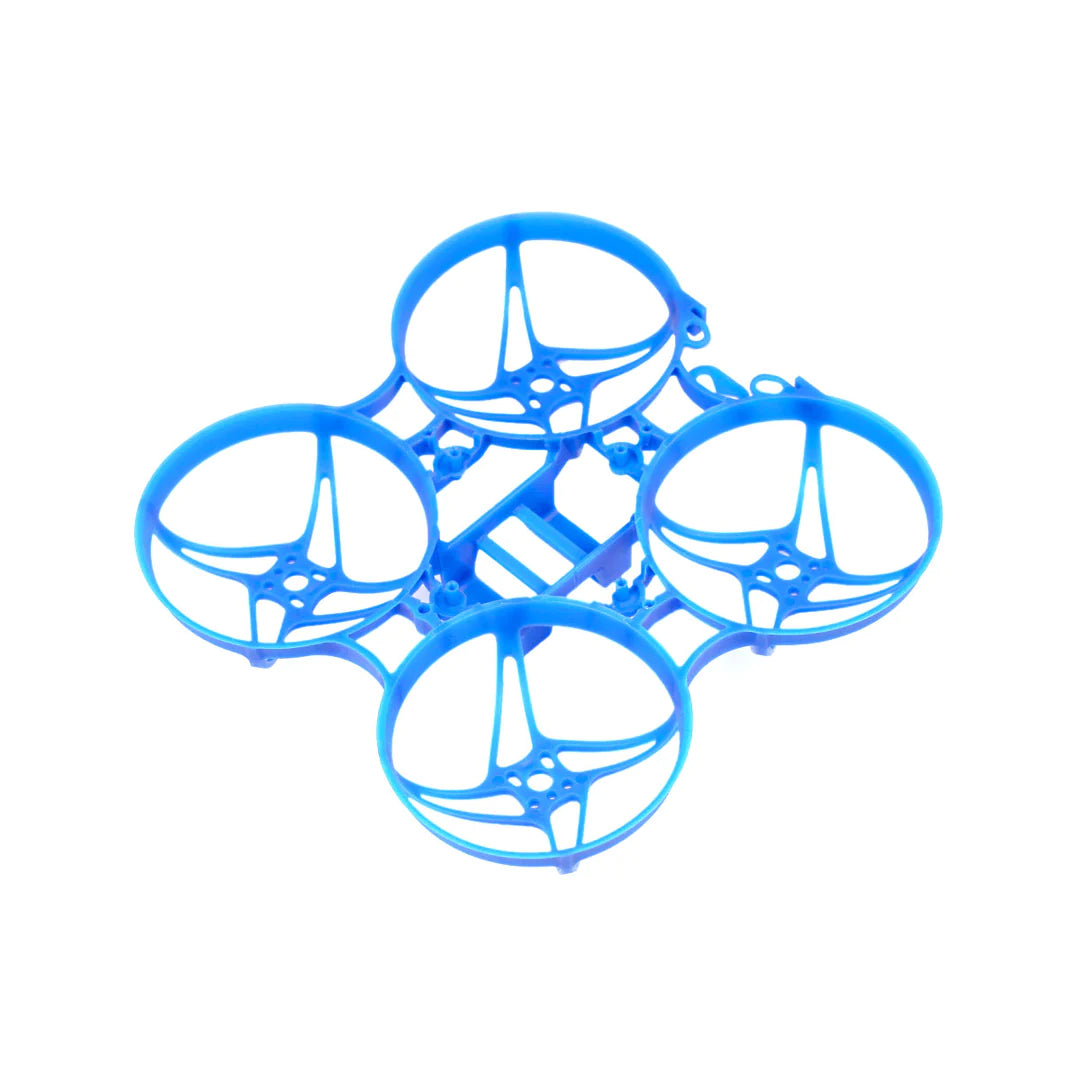

  • Color: Black/White/Transparent/Cyan/Blue/Purple/Pink/Red/Orange/Yellow
  • Motor mounting hole:¬†For 3 and 4 screw mount Micro Brushless Motors
  • FC mounting hole:¬†26mm x 26mm, fully compatible with whoop style FC board mounting pattern

Package

  • 1 * Meteor75 Micro Brushless Whoop Frame
