BetaFPV C03 FPV Micro Camera

BetaFPV C03 FPV Micro Camera

Regular price $19.99 USD
Regular price $19.99 USD Sale price $19.99 USD
Sale Sold out

My Review

This is one of the best cameras for tiny whoops on the market, in my opinion! It is lightweight and has best in class image. I've seen people mistake this camera for an HD camera multiple times! You won't find another camera currently on the market with a better image at this weight. The catch is that it seems to not do as well outdoors. Outdoors, it looks rather mediocre, in my opinion. But indoors, it can almost pass for HD. It also isn't the most wide FOV camera on the market but it is decently wide and has less fisheye distortion that other ultrawide cameras. This all makes it a pretty popular camera for UWL!

I'll put some footage here though so you can really see and decide for yourself!
(Link coming soon)

More Info

C03 is a lightweight 1.45g and 1200TVL resolution camera that has been designed to provide superb performance for micro FPV quadcopters. It has a 2.1mm lens that gives a 160° field of view, operating in 4:3 image ratios, and features a 1/3'' CMOS sensor for clear and brilliant images. It is supplied with a BetaFPV Micro Canopy, which perfectly fits for C03 camera (and M03 VTX), making it more convenient for pilots to build quads.

Bullet Points

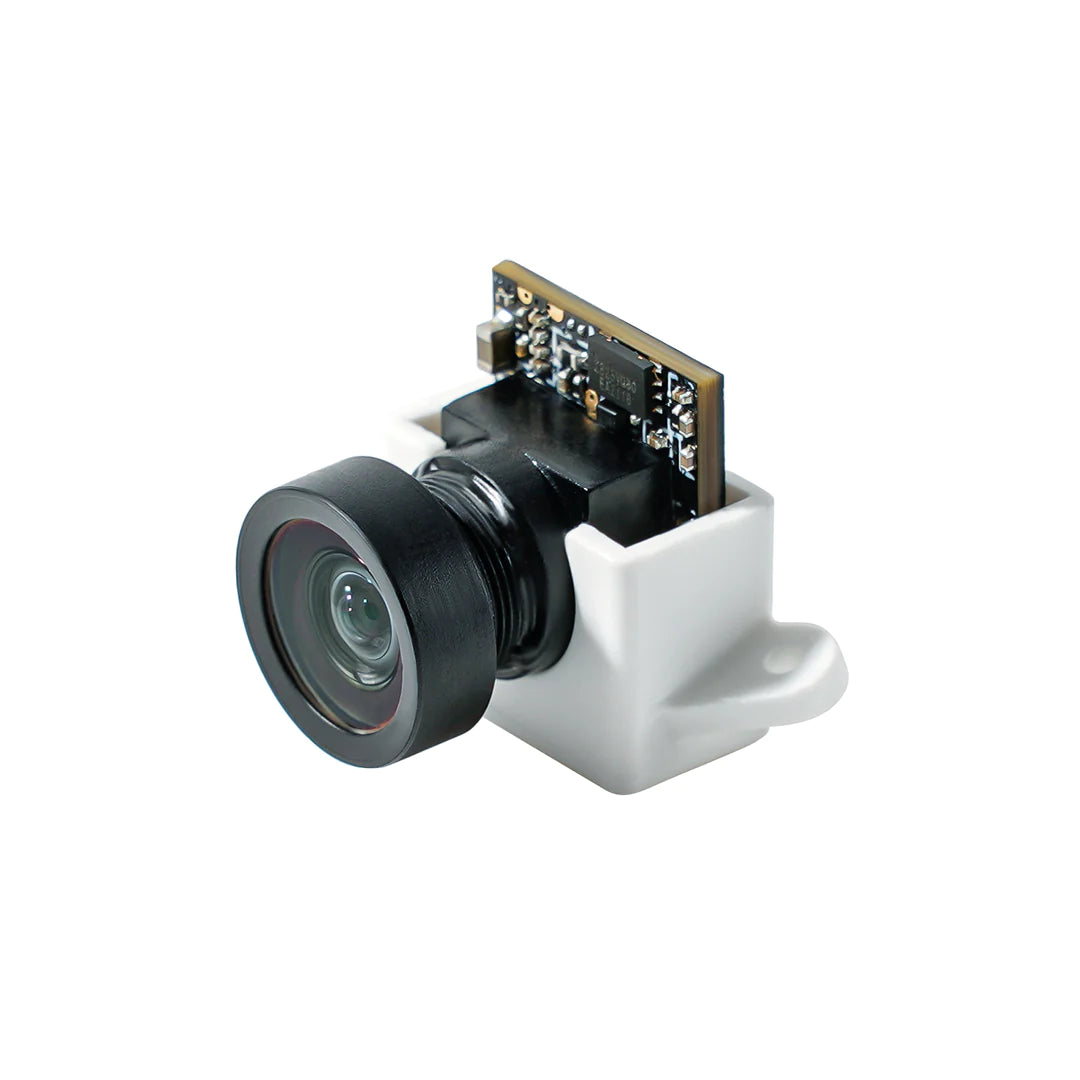

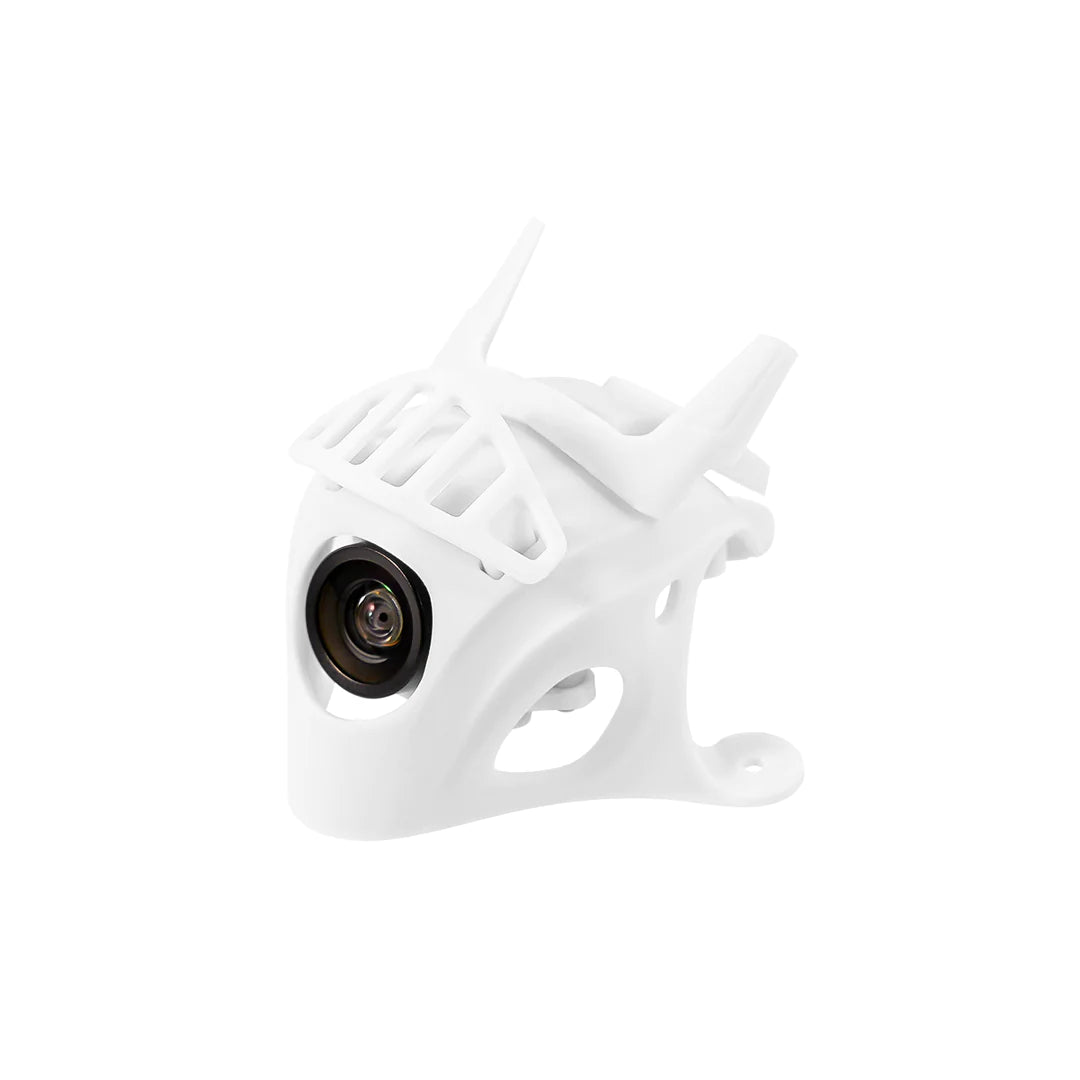

  • Comes with BetaFPV Micro Canopy, and 20°/30° camera mounts, which fully match the C03 camera. This bundle allows pilots to build whoop drones easily.
  • Made of high-quality ABS material and covered by BetaFPV Micro Canopy, the C03 FPV Micro Camera is durable enough for use.
  • Miniature, and lightweight design, weighing only 1.45g. Completely suitable for M03 5.8G VTX on micro whoop drone.
  • 1200TVL resolution and 1/3" CMOS sensor ensure a high-quality and clear image
  • Global WDR camera, 4:3 aspect ratio, shoot clear dynamic image even in low light condition
  • 2.1mm lens, FOV 160° beyond the wide angle for recording more wide and beautiful scenes.


      • Item: C03 FPV Micro Camera
      • Image Sensor: 1/3" CMOS Sensor
      • Horizontal: 1200TVL with Global WDR
      • Signal System: NTSC (4:3)
      • Lens : 2.1mm(M7) FOV 160°
      • S/N Ratio: >50db
      • Electronic Shutter Speed: Auto
      • Auto Gain Control (AGC): Auto
      • Min. Illumination: 0.01Lux@1.2F
      • D-WDR: Auto
      • Day/Night: Color
      • Power: DC 3-5.5V
      • Current: 100mA@5V / 120mA@3.3V
      • Housing Material: ABS
      • Dimension: 11*14.1*13.5mm

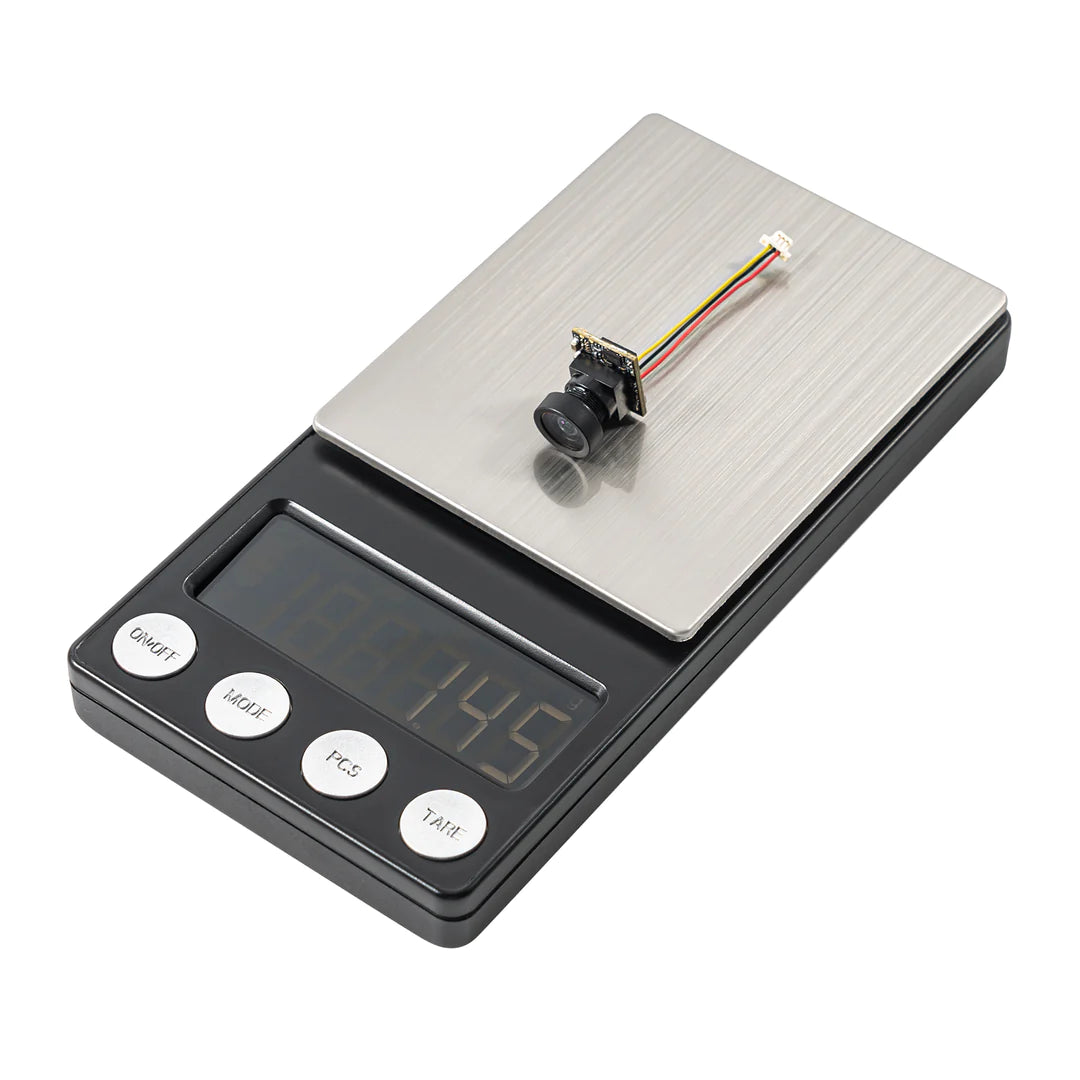

      • Net weight: 1.45g

      Plug-N-Play Connector

      C03 FPV Micro Camera features a JST-0.8 connector, a special design in plug-and-play, that makes it easy to install on the BetaFPV M03 VTX without soldering.


      • 1 * C03 FPV Micro Camera
      • 1 * BETAFPV Micro Canopy
      • 1 * 20° Lens Camera Mount for C02 Camera (last gen, not included)
      • 1 * 20° Lens Camera Mount for C03 Camera
      • 1 * 30° Lens Camera Mount for C03 Camera
      • 3 * Decorative Parts
      • 4 * M1.4*5 Screws (Sliver)
      • 6 * M1.4*4 Screws (Black)
